Dissolution Media Preparation Station X15
Since 2012, the DissoPrep X15 combines the high-precision gravimetric working principle with a large 15-liter tank.
This means that up to two dissolution testers can be filled simultaneously with the identical compact dimensions of the DissoPrep X8 ». With its unique working principle and its flexible usability the DissoPrep series is your guarantee for a convenient and high-precision medium preparation and dosing.
Innovative Working Principle
The outstanding feature of our DissoPrep is the gravimetric working principle without liquid pump(s) according to the USP method, this means that Mixing and dosing is done by vacuum and pressure with continuous weight measurement.
The suction through high vacuum (typically <100mbar) with simultaneous filtering, heating and stirring guarantees a long and efficient degassing process according to the USP method. The continuous, high-precision measurement of the weight delivers the correct standard volume for your medium required by USP at any desired temperature. Because of the known issue, that different media have different densities at different temperatures, only the measurement of the weight provides the correct standard volume. In addition there are no inaccuracies with foaming media, in contrast to the volume measurements with liquid pumps. So foaming media can be mixed with the same high precision and can be dispensed directly into the vessels. This working principle assures absolute reliability and reproducibility of medium preparation and dosage.
Extensive ease of work
The DissoPrep X15 not only assures a reproducible and highly accurate preparation and dosage of your medium, but also rewards you with a considerable relief of your daily work routine. Compact dimensions allow the use as a desktop device or mobile on a laboratory cart to flexibly reach any dissolution tester. More than 100 different stored methods can be retrieved flexibly. Within about 12 minutes, up to 8 liters of dissolution medium are prepared and according to the guidelines of the USP, EP, JP, FDA and GLP / GMP tempered, mixed and degassed. Since this is completely self-sufficient, you can pursue other activities during this time. Thereafter you can conveniently and precisely dose it directly into the vessels and a report is automatically generated for your documentation. An automatic cleaning process cleans the complete system afterwards.
The standard browser interface for the DissoPrep integrates it quickly and easily without software installation into your IT landscape and enables you a much more easy operation with your PC. Instead of doing extensive entries on the keypad of the DissoPrep, you can use alternatively the convenient and intuitive operation on the (Internet) browser of your PC. In particular, the administration of methods, reports and users with their user permissions can be carried out quickly. You will not miss a touchscreen at the device for starting the preparation and dosing. With the optional "CFR Package" a 21 CFR part 11 compliant use of the DissoPrep is possible and the optional "Backup Package" ensures an automatic backup of your data. For more information about the browser interface, go to "Information" or have a look in the video.
Summary of the features of the DissoPrep X15:
- highest reliability due to the absence of liquid pumps
- reproducible, high-precision gravimetric working principle (typically <0.1%) according to the USP process including filtering, heating, degassing, (mixing) additive, stirring and dosing directly into the vessels, even with foaming media (surfactants up to 3.5%)
- An inlet for premixed medium and an inlet for additives to be admixed (acid, buffer, surfactants) for flexible use - also connectable to demineralised water supply
- fast, self-sufficient and convenient medium preparation of up to 15 liters in approx. 15 minutes - great time savings!
- foaming media possible (e.g. medium containing up to 2% SDS)
- quick and easy dosing directly into the vessels within seconds (3m tube length)
- Weight per vessel adjustable from 100g-8000g in 1g increments

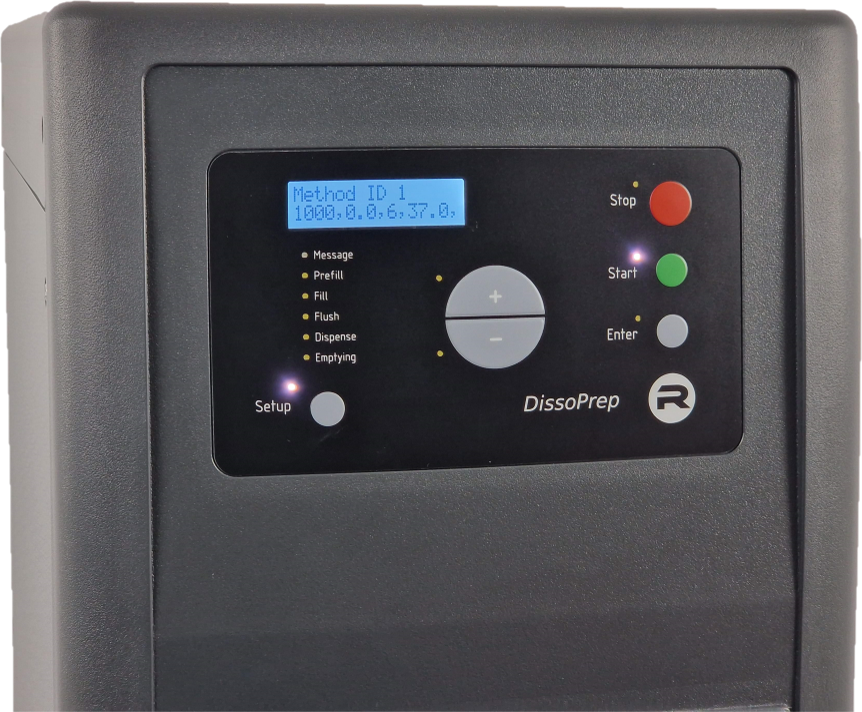

- simple operation via two-line display
- storage capacity for >100,000 methods and reports
- easiest integration into your IT landscape with the "Browser Interface"
- simple, intuitive and clear administration (e.g. method, report and user administration) with the "Browser Interface", replacing the administration via the instruments buttons
- NEW: individual role assignment via the browser interface
- NEW: "Parent-child functionality" for easy method, user and access rights transfer
- NEW: optional 21 CFR Part 11 compliance available for the browser interface
- NEW: optional electronic signature via the browser interface including audit trail commenting
- NEW: optional manual or automatic backup
- Complete documentation incl. achieved vacuum and degassing time (GLP) - Printout via USB, LAN or pdf

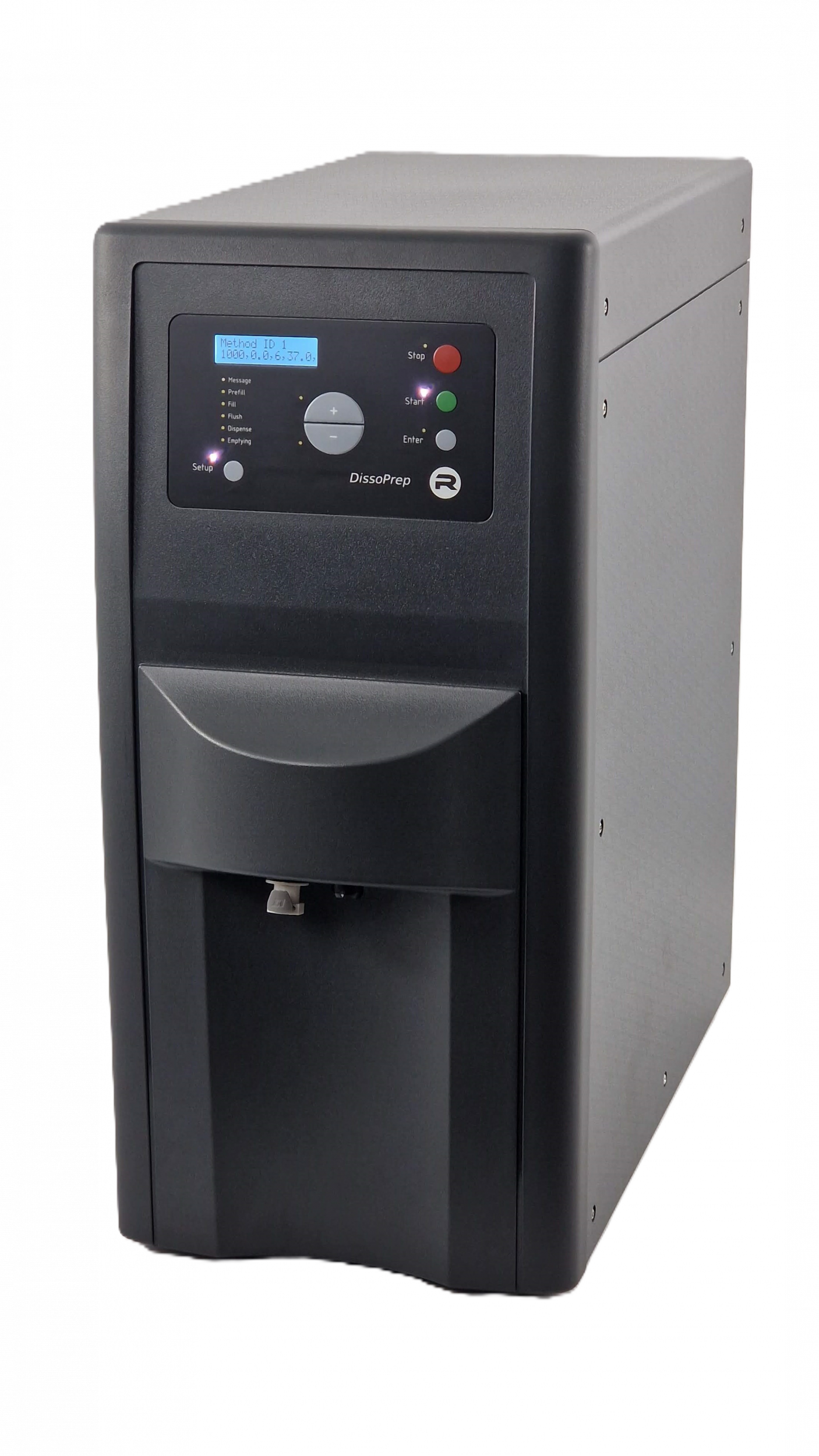

- compact dimensions, can be used as a desktop device or mobile on a laboratory cart
- automatic cleaning process of the coplete system incl. all tubings
- with calibration and validation protocols of vacuum, temperature and standard volume (weight)
- USP / EP / JP / FDA compliant
- ISO 9001 certified manufacturing - Made in Germany
For more information, see the drop-down box under Brochures, Information, and Videos. For example, our comic will briefly show you how our customers inspired us to build the DissoPrep and why it has convinced so many customers. Our video demonstrates the unique working principle.
For more information on the DissoPrep X8 with 8 liter tank, see DissoPrep X8»
Do you have any questions? We are happy to assist you personally. Please use our contact center to send us an email or give us a call.
Most important features:
100% USP/EP/JP compliant
Highly precise mixing and dosing
great time savings and easy to use
Easy management with browser interface
Print via USB, LAN or PDF
2% SLS-containing medium possible
Individual assignment of permissions
